Pipe Fittings

Threaded Fittings

Small Bore Pipe Fittings for Low-Cost, Non-Critical Applications — Manufactured as per ASME B16.11 in NPT, BSP & BSPT Threading

Threaded Fittings
ASME B16.11

Product Overview

Threaded Pipe Fittings

Threaded joints probably represent the oldest method of joining piping systems. Threaded fittings are mainly used for small pipe diameters (Small Bore Piping); generally for piping whose nominal diameter is NPS 2 or smaller. Threaded piping is commonly used in low-cost, noncritical applications such as domestic water, fire protection and industrial cooling water systems.

Type

Elbow 45°/90°, Tee, Cross, End Caps, Full Coupling, Half Coupling, Square/Hex/Round Head Plug, Hex Head Bushing, Union (MSS SP-83), Pipe Nipple/Hex Nipple

Dim. Standard

ASME B16.11

Grade

ASTM/ASME A105, A350 LF2 & A182 Gr. F5, F11, F22, F51, F52, F91, F92, F304, F304H, F304L, F310, F316, F316L, F317, F317L, F321 & F347

Class

3000# & 6000# & 9000#

Threaded Type

NPT, BSP & BSPT

Range

1/2" NB TO 4" NB

Types

Fitting Range

Elbow
Elbow 45°/90°
Elbow 45°/90°

Threaded elbows for changing flow direction at 45° and 90° in small bore piping.

Tee
Tee
Tee

Equal threaded tee for branching flow in three directions.

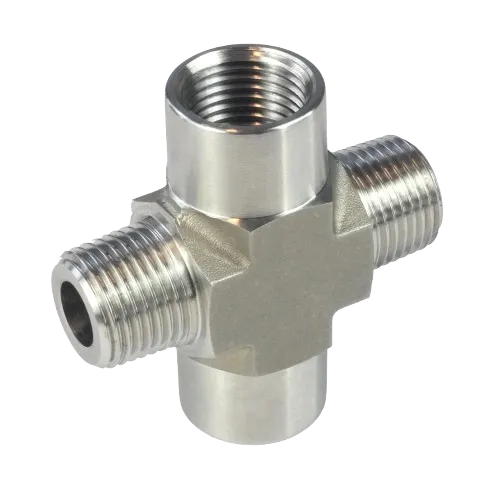

Cross
Cross
Cross

Four-way threaded cross fitting for multi-directional flow distribution.

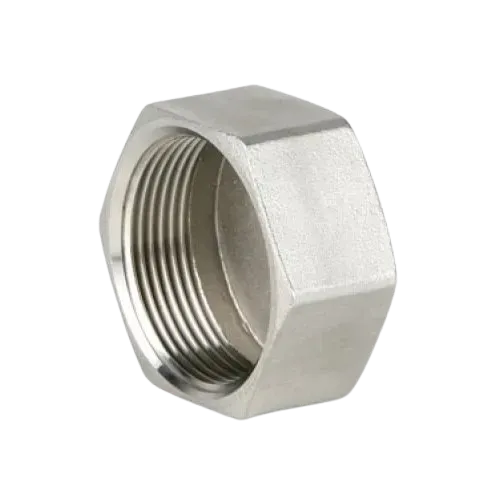

End Caps
End Caps
End Caps

Threaded end caps to seal and close pipe ends securely.

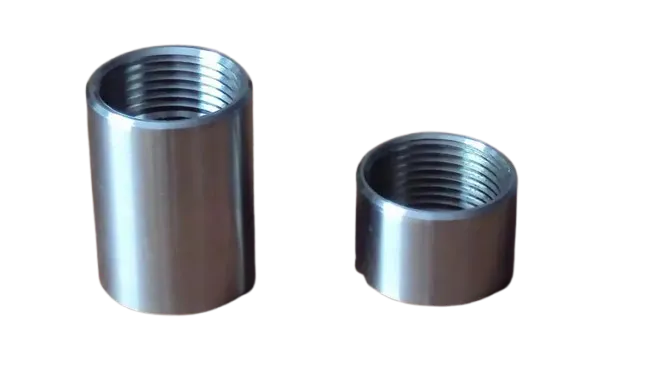

Full Coupling
Full Coupling
Full Coupling

Full threaded coupling for joining two pipes of the same diameter.

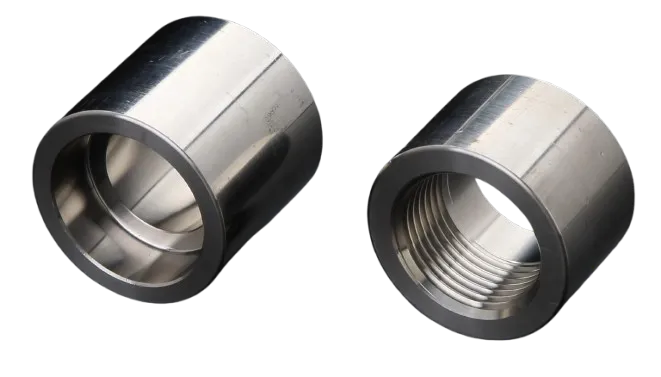

Half Coupling
Half Coupling
Half Coupling

Half coupling for branch connections on pipes or vessels.

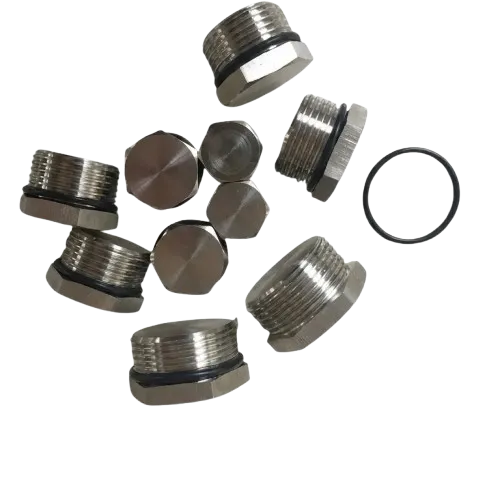

Plug
Plug
Square / Hex / Round Head Plug

Threaded plugs in square, hex and round head styles for closing pipe openings.

Hex Head Bushing
Hex Head Bushing
Hex Head Bushing

Hex head bushing for reducing one threaded pipe size to another.

Union
Union
Union (MSS SP-83)

Threaded union as per MSS SP-83 for easy disconnection and reconnection of pipes.

Nipple
Nipple
Pipe Nipple / Hex Nipple

Short threaded pipe and hex nipples for connecting two fittings or valves.

Technical Data

Dimensional Standards

Parameter Standard Specification
Dim. Standard ASME B16.11
Size (NPS) 1/2" NB TO 4" NB
Class 3000# & 6000# & 9000#
Threaded Type NPT, BSP & BSPT
End Finish Threaded (Male / Female)
Grade ASTM/ASME A105, A350 LF2 & A182 Gr. F5, F11, F22, F51, F52, F91, F92, F304, F304H, F304L, F310, F316, F316L, F317, F317L, F321 & F347

Material Range

Available Grades

Stainless Steel
ASTM / ASME A182 F
F304F304HF304L F310F316F316L F317F317LF321F347
Carbon Steel
ASTM / ASME A105
A105
ASTM / ASME A350 (Low Temp)
LF2
Alloy Steel
ASTM / ASME A182 F
F5F11F22 F51F52F91F92

End Use

Key Applications

Domestic Water

Residential and commercial water supply piping systems.

Fire Protection

Sprinkler and fire suppression piping networks.

Cooling Water

Industrial cooling water systems and HVAC piping.

Industrial

General low-pressure, noncritical industrial piping applications.

Quality Assurance

Testing & Inspection

Hydrostatic Test
Ultrasonic Test
Radiography (RT)
Magnetic Particle (MT)
Dye Penetrant (PT)
PMI Testing
Chemical Analysis
Mechanical Testing

ISO 9001:2015 Certified

PED 2014/68/EU Approved

cta-bg

Request a Technical Quote

Share your requirements — fitting type, grade, size, class, thread type, quantity — and our technical team will respond within 24 hours.

Get a Quote Call Now

FAQ

Frequently Asked Questions

Threaded fittings are pipe fittings joined by screwing male and female threaded ends together. They are mainly used for small bore piping (NPS 2 or smaller) in low-cost, noncritical applications like domestic water, fire protection and cooling water systems.

Our threaded fittings are manufactured as per ASME B16.11 covering forged fittings in socket-weld and threaded types.

We supply threaded fittings in NPT (National Pipe Taper), BSP (British Standard Pipe) and BSPT (British Standard Pipe Taper) thread forms as per customer requirement.
